about this item:

Adapter Micro Mini 3g HDMI to SDI

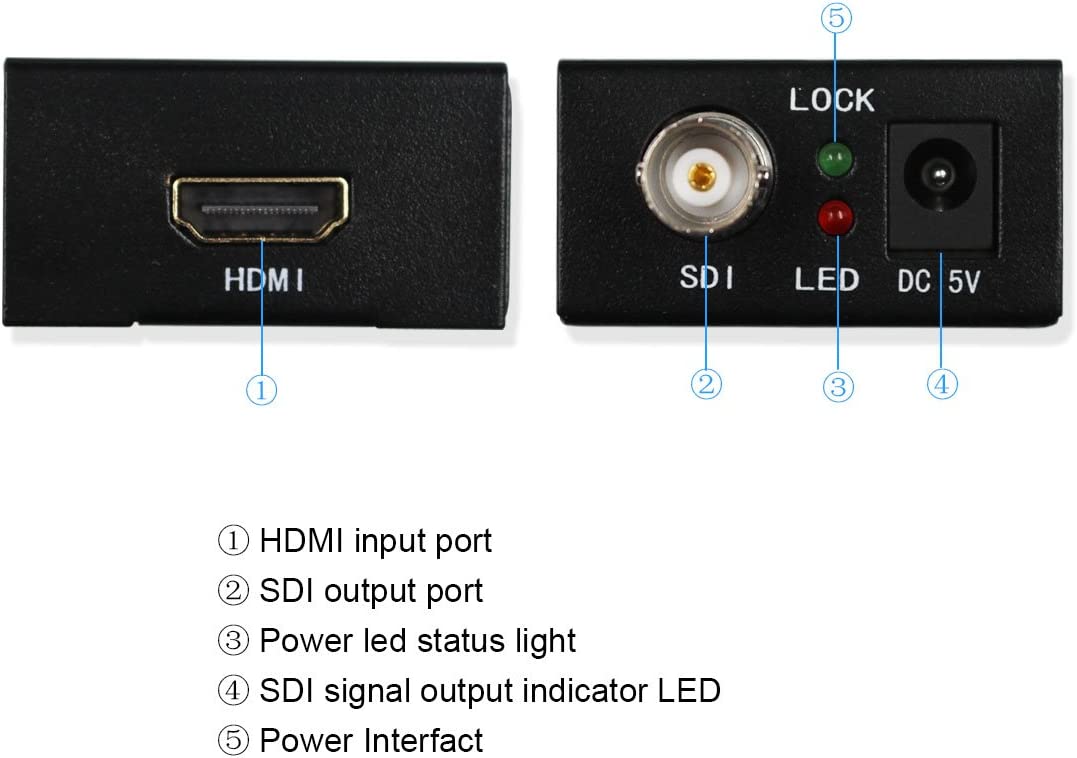

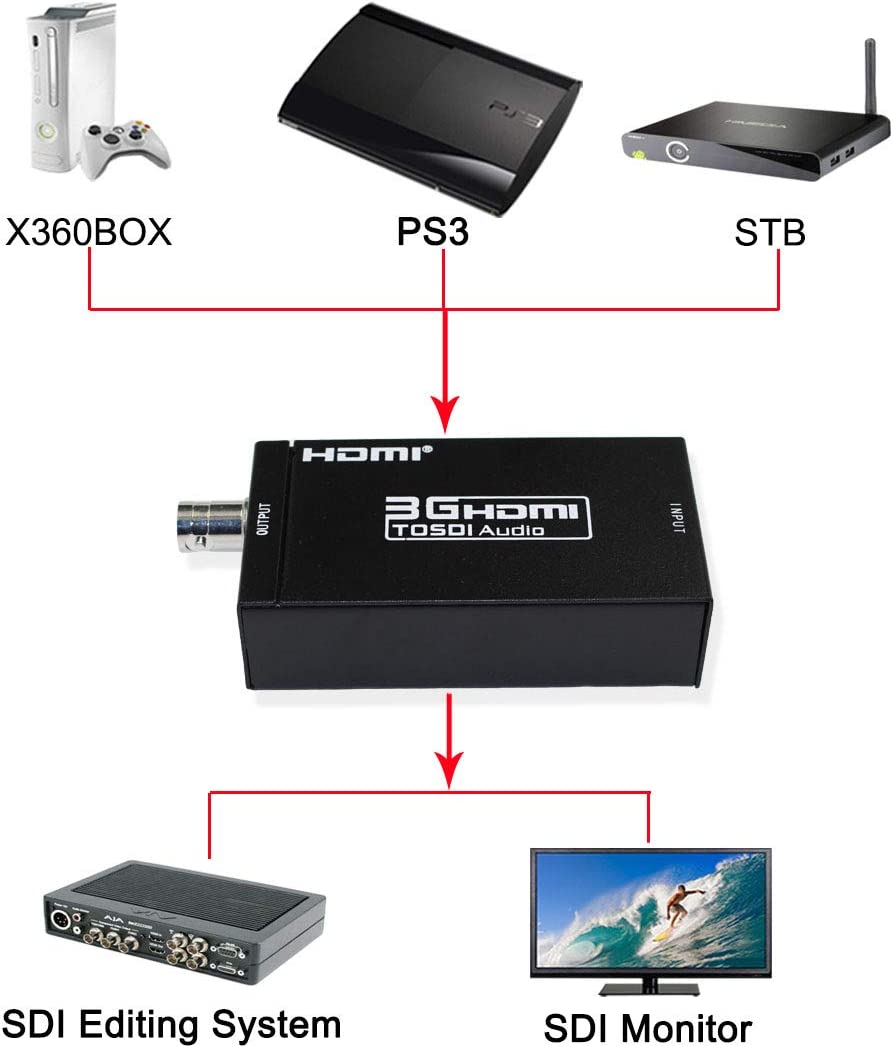

The MINI HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high definition HDMI signal with audio to SDI for long distance transmission and display your work on SDI displayer. (Do not support Blackmagic and SONY brand device,Do not support SD(480p/i,756p/i) SDI-OUT: This slot is where you connect the SDI display with sdi cable . DC IN: Plug the 5V-12V DC power supply into the unit. HDMI IN: This slot is where you connect the HDMI source with HDMI cable. ESD Protection Human body model: ±8kV (air-gap discharge), ±4kV (contact discharge) Please note:Our device can not compatible the Blackmagic and SONY brand device.Do not support SD

• HDMI input /SDI output resolution: 720p/50/60, 1080i/50/60, 1080p24/25/30/50/60:
• when hdmi resolution is 1080i/50/60,the sdi resolution is 1080p/50/60 :
• this converter does not support 480p/i,576p/i :
